Product details:

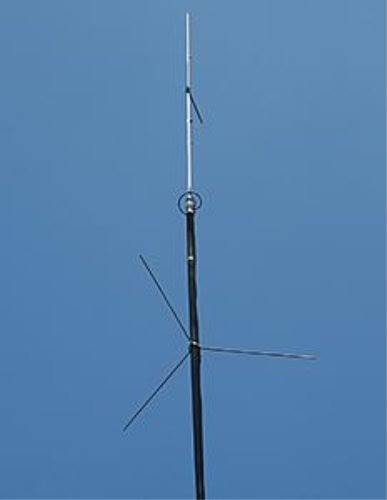

RINGO RANGER II. The Antenna has more gain, less windload, and more mechanical integrity than other two meter antennas. Youll quickly appreciate the benefits of this amazing antenna! Based on the original W1BX Ringo, the Ringo Ranger II is the latest design featuring three 5/8 wave radiating elements and an adjustable 1/8 wave phasing stub. The result is a very low angle of radiation over your coverage area. The Ringo Ranger II has built-in lightning protection, UV-stabilized insulators, heavy wall tubing, improved decoupling radials to eliminate feedline radiation, and all-weather performance. Specifications: Frequency, MHz : 135-160 SWR 1. 2:1 Typical: > 32:1 Bandwidth, MHz Gain, dBi: 7. 0 Power Rating, Watts FM: 1000 Radiation Angle, Deg: 7 Horizontal Radiation Pattern, Deg: 360 Radiator Base Dia, in(cm) :. 75(1. 9) Height, ft(m) 14(4. 3) Mast Size Range, in(cm) 1. 0-1. 25 (2. 54-3. 1) Wind Load, square ft (m square) : 0. 5 (0. 05) Radial Length, in(cm): 20. 5 (52. 1) Weight, lb(kg) : 6 (2.
